Bengal laser cutter

Holton Building Digital Fabrication Shop (Digifab) tools maintenance logs
1

3/17/25

X axis stepper making bad noises

Checked flex harness on RH side of machine, found an open circuit wire:

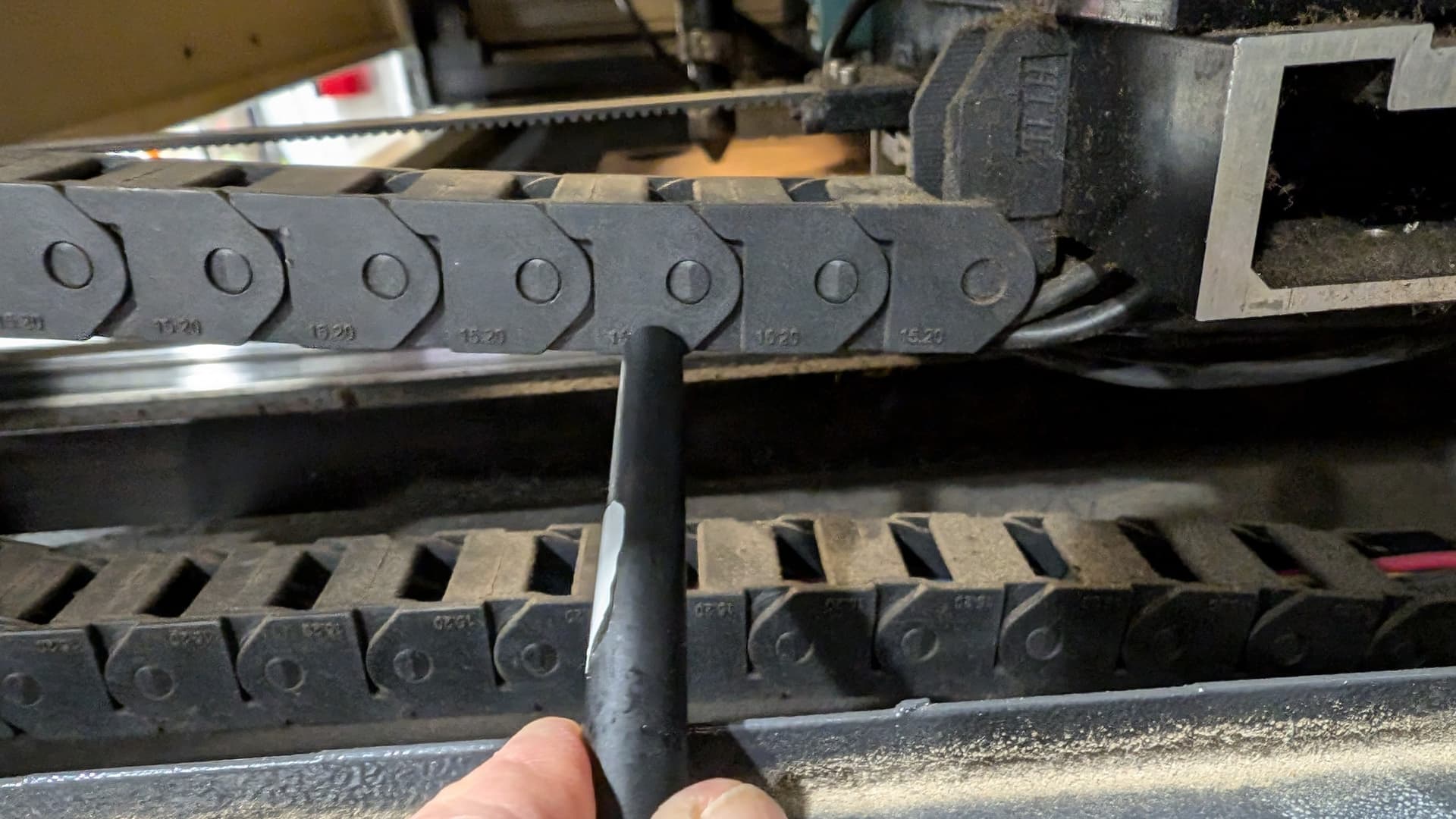

Fix: used blue butt-splice inline, placing wire back inside the wire loom The butt splice is about 3" from the moving end of the flexible wire loom - if it fails again, this is the first place to look

smaller
smaller1920×1080 172 KB

Note: a soldered connection with heat shrink over might be a better solution, if the butt splice fails early, try that next time.

Also attached the flex wire loom to its anchor on the machine frame.

2

Prediction realized, butt splice connection failed in ~9 months.

Now repaired (for now) with soldered joint.

Note: this cable looks to have been pulled and is a relatively low count braid, should be replaced with something that will flex better over time.
